Beta-Arrestin1

(All numbering and residues are taken from first PDB file)

Bending Residue Dihedral Analysis

Residue
i
Residue
i+1
Distance of hinge axis to residue i in conformer 1
(A)
Distance of hinge axis to residue i in conformer 2
(A)
Change in psi (i)
(deg)
Change in phi (i+1)
(deg)
Angle of psi(i) axis to hinge axis conformer 1
(deg)
Angle of psi(i) axis to hinge axis conformer 2
(deg)
Percentage Progress
 LEU-57   THR-58  11.3 11.7 0.8 2.7 105.1 103.8 -18.3
 THR-58   CYS-59  9.5 9.7 -13.4 14.6 42.9 39.9 11.5
 CYS-59   ALA-60  8.2 8.6 -1.9 3.6 100.6 102.7 -1.7
 ALA-60   PHE-61  8.1 8.1 -0.8 -1.1 61.1 59.0 6.8
 PHE-61   ARG-62  8.6 8.7 -18.7 27.5 141.1 140.4 25.9
 ARG-62   TYR-63  9.0 8.3 -9.9 -14.2 66.7 70.3 51.4
 TYR-63   GLY-64  11.9 11.5 25.4 126.7 33.7 38.8 529.2
 GLY-64   ARG-65  13.2 14.1 -21.2 -40.3 104.1 78.7 79.9
 ARG-65   GLU-66  12.9 17.6 9.7 -6.6 85.2 103.3 34.9
 GLU-66   ASP-67  9.5 20.4 1.8 -17.6 27.5 51.0 -48.3
 ASP-67   LEU-68  9.5 23.0 10.8 -1.4 49.7 22.9 39.6
 LEU-68   ASP-69  9.8 21.0 -28.4 58.2 74.4 89.6 45.9
 ASP-69   VAL-70  8.8 21.5 -16.1 12.4 137.7 131.8 -4.8
 VAL-70   LEU-71  11.7 18.3 -18.9 -11.7 68.8 61.8 53.2
 LEU-71   GLY-72  14.5 16.8 -1.2 -13.3 92.6 100.4 9.8
 GLY-72   LEU-73  17.6 13.1 17.1 35.0 120.7 85.5 -96.9
 LEU-73   THR-74  16.1 12.9 173.7 -34.9 148.6 150.1 -650.3
 THR-74   PHE-75  13.2 11.0 28.5 -34.6 112.5 75.9 -3.7
 PHE-75   ARG-76  13.7 11.1 3.9 26.6 104.4 133.0 -72.9
 ARG-76   LYS-77  11.6 9.6 -26.6 36.9 69.9 80.1 -14.3
 LYS-77   ASP-78  12.8 12.3 6.3 2.5 99.3 116.4 -15.1
 ASP-78   LEU-79  12.1 12.3 5.3 -13.3 152.6 152.7 48.5

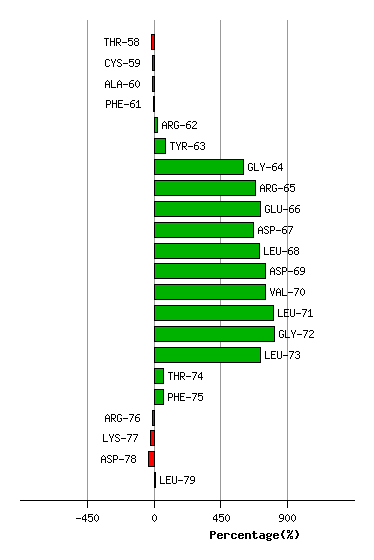

Downloading Image

Graph shows rotational transition at bending residues and can be used to identify hinge bending residues.
Probably only informative for interdomain rotations greater than 20 degrees


Residue
i
Residue
i+1
Distance of hinge axis to residue i in conformer 1
(A)
Distance of hinge axis to residue i in conformer 2
(A)
Change in psi (i)
(deg)
Change in phi (i+1)
(deg)
Angle of psi(i) axis to hinge axis conformer 1
(deg)
Angle of psi(i) axis to hinge axis conformer 2
(deg)
Percentage Progress
 GLY-179   PRO-180  9.6 5.4 -29.8 -9.8 61.3 27.7 115.0
 PRO-180   GLN-181  6.4 3.9 0.5 6.4 59.0 83.6 -9.4
 GLN-181   PRO-182  4.6 2.8 -36.0 -0.4 110.2 90.9 -53.4

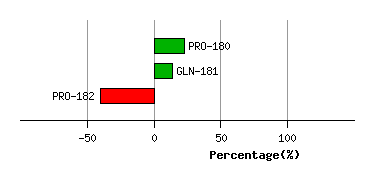

Downloading Image

Graph shows rotational transition at bending residues and can be used to identify hinge bending residues.
Probably only informative for interdomain rotations greater than 20 degrees


Residue
i
Residue
i+1
Distance of hinge axis to residue i in conformer 1
(A)
Distance of hinge axis to residue i in conformer 2
(A)
Change in psi (i)
(deg)
Change in phi (i+1)
(deg)
Angle of psi(i) axis to hinge axis conformer 1
(deg)
Angle of psi(i) axis to hinge axis conformer 2
(deg)
Percentage Progress
 GLU-346   LEU-347  11.6 10.9 -4.5 -7.0 101.4 98.1 -31.9
 LEU-347   PRO-348  7.9 7.3 -19.1 4.1 30.5 28.3 61.3
 PRO-348   PHE-349  5.5 5.2 -2.6 4.4 88.2 88.9 -12.8

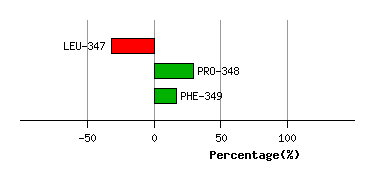

Downloading Image
