DynDom - Protein Domain Motions

Actin, Alpha Skeletal Muscle

(All numbering and residues are taken from first PDB file)

Run Details Domains Sequence Morph Domain Pairs Contact Graph

DynDom run details

Property	Value
Name	Actin, Alpha Skeletal Muscle
Conformer 1 (PDB)	8a2t (C)
Conformer 2 (PDB)	9fjo (A)
Window Length	5
Minimum ratio	1.0
Minimum domain size	20

Domains

Domain	Size	Backbone RMSD (A)	Residues
1	129	0.88	8 - 33 69 - 138 337 - 370
2	25	0.82	34 - 68
3	198	0.55	139 - 336

Sequence

`__________________________33__________________________65________________________________________________________________` `8a2t(C) : TALVCDNGSGLVKAGFAGDDAPRAVFPSIVGRPRHQGVMqKDSYVGDEAQSKRGILTLKYPIEgIITNWDDMEKIWHHTFYNELRVAPEEHPTLLTEAPLNPKANREKMTQIMFETFNVP` `:` `9fjo(A) : TALVCDNGSGLVKAGFAGDDAPRAVFPSIVGRPR------kDSYVGDEAQSKRGILTLKYPIEgIITNWDDMEKIWHHTFYNELRVAPEEHPTLLTEAPLNPKANREKMTQIMFETFNVP` `__________________________33__________________________65________________________________________________________________` `_____138________________________________________________________________________________________________________________` `8a2t(C) : AMYVAIQAVLSLYASGRTTGIVLDSGDGVTHNVPIYEGYALPHAIMRLDLAGRDLTDYLMKILTERGYSFVTTAEREIVRDIKEKLCYVALDFENEMATAASSSSLEKSYELPDGQVITI` `:` `9fjo(A) : AMYVAIQAVLSLYASGRTTGIVLDSGDGVTHNVPIYEGYALPHAIMRLDLAGRDLTDYLMKILTERGYSFVTTAEREIVRDIKEKLCYVALDFENEMATAASSSSLEKSYELPDGQVITI` `_____138________________________________________________________________________________________________________________` `___________________________________________________________________________________336__________________________________` `8a2t(C) : GNERFRCPETLFQPSFIGMESAGIHETTYNSIMKCDIDIRKDLYANNVMSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWITKQEYDEAGPSIV` `:` `9fjo(A) : GNERFRCPETLFQPSFIGMESAGIHETTYNSIMKCDIDIRKDLYANNVMSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWITKQEYDEAGPSIV` `___________________________________________________________________________________336__________________________________` `_____` `8a2t(C) : HRKCF` `:` `9fjo(A) : HR***` `_____`

Morph

Morph animation in progress.
Status: Initialising

This morph was created using the MorphIt_Pro protein morphing technique.
For more advanced options, right click on the model.

Show console

play backwards

pause

play forwards

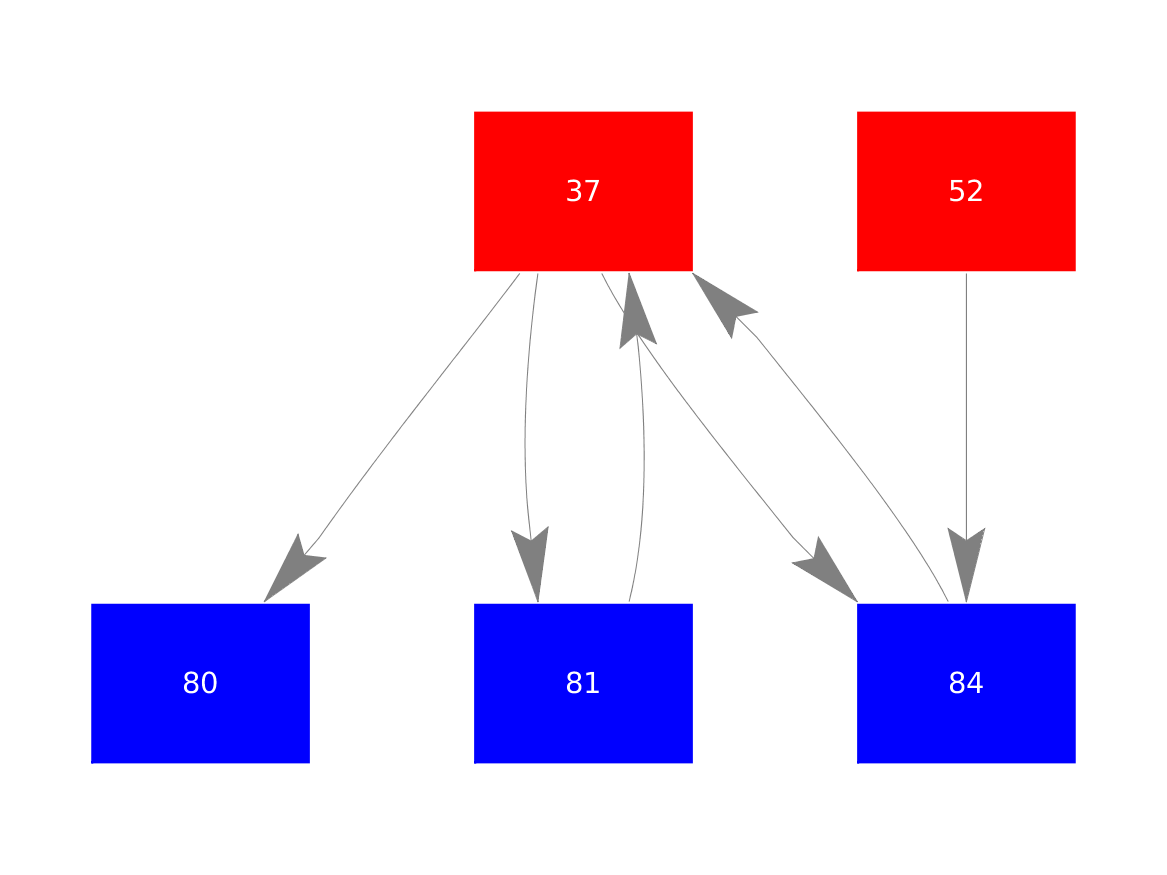

Domain Pairs

Property	Value
Fixed Domain ( blue )	1
Moving Domain ( red )	2
Rotation Angle (deg)	15.1
Translation (A)	-0.3
Closure (%)	95.9
Bending Residues ( green )	33 - 34 65 - 70

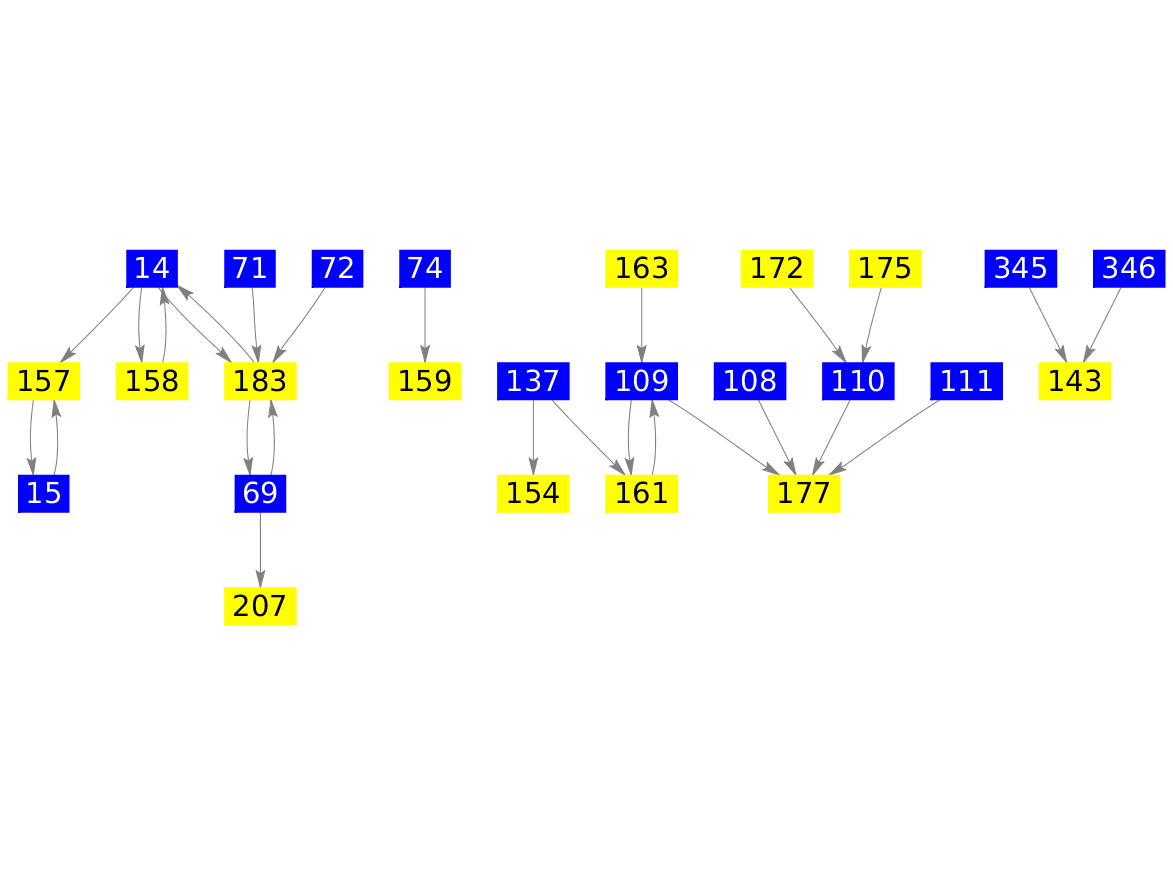

Bending Region Analysis

Property	Value
Fixed Domain ( blue )	1
Moving Domain ( yellow )	3
Rotation Angle (deg)	13.5
Translation (A)	-0.4
Closure (%)	16.1
Bending Residues ( green )	138 - 141 336 - 337
Bending Region Analysis
