Beta-1,3-1,4-Glucanase

(All numbering and residues are taken from first PDB file)

Run Details Domains Sequence Morph Domain Pairs Contact Graph

DynDom run details

  Property   Value
  Name Beta-1,3-1,4-Glucanase
  Conformer 1
(PDB) 		3wdy (B)
  Conformer 2
(PDB) 		3wdt (D)
  Window Length 5
  Minimum ratio 1.0
  Minimum domain size 20

Domains

Domain Size Backbone RMSD
(A)		 Residues
1 247 0.48   3 - 79   81 - 112   115 - 125   136 - 147   167 - 186   192 - 226   235 - 294
2 45 0.31   80 - 80   113 - 114   126 - 135   148 - 166   187 - 191   227 - 234

Sequence


           ______________________________________________________________________________79______________________________112_______
 3wdy(B) : *YHLVDDYGRGNGFFDKFNFFTGDDPTHGYVDYVSRDVAAGAGLIGERDGRTYMGVDFTNPASGRGRRSVRLESKNTYEHGLIVIDLAHMPGSVCGTWPAFWTLGTGDWPYGGAIDIIEG
         :
 3wdt(D) : FYHLVDDYGRGNGFFDKFNFFTGDDPTHGYVDYVSRDVAAGAGLIGERDGRTYMGVDFTNPASGRGRRSVRLESKNTYEHGLIVIDLAHMPGSVCGTWPAFWTLGTGDWPYGGEIDIIEG
           ______________________________________________________________________________79______________________________112_______

           ___125_______135________146_________________166_________________186__191________________________________226_____234_____
 3wdy(B) : VNDNTFNHMVLHTSDGCTIDNDGFTGNLKTSNCYVYAPGQDANAGCGIEATDPNSYGKGFNSIGGGIYATEITPNGISIWFFPRGSEPGDVLGDNPNPANWDTPAAKFAGGGCDWEGKFN
         :
 3wdt(D) : VNDNTFNHMVLHTSDGCTIDNDGFTGNLKTSNCYVYAPGQDANAGCGIEATDPNSYGKGFNSIGGGIYATEITPNGISIWFFPRGSEPGDVLGDNPNPANWDTPAAKFAGGGCDWEGKFN
           ___125_______135________146_________________166_________________186__191________________________________226_____234_____

           _________________________________________________________
 3wdy(B) : AQRLIFDVTFCGDWAGNVWGIGGCASRAANCVDFVRDNPSAFAESYWLVNSLRVYAP
         :
 3wdt(D) : AQRLIFDVTFCGDWAGNVWGIGGCASRAANCVDFVRDNPSAFAESYWLVNSLRVYAP
           _________________________________________________________

Morph
Morph animation in progress.
Status: Initialising

This morph was created using the MorphIt_Pro protein morphing technique.
For more advanced options, right click on the model.


Show console


play backwards pause play forwards

Domain Pairs

Property Value
Fixed Domain
( blue ) 		1
Moving Domain
( red ) 		2
Rotation Angle
(deg) 		3.5
Translation
(A) 		-0.1
Closure
(%) 		99.8
Bending Residues
( green ) 		  79 - 81
  112 - 115
  125 - 126
  135 - 136
  146 - 148
  166 - 167
  186 - 188
  191 - 192
  226 - 227
  234 - 235

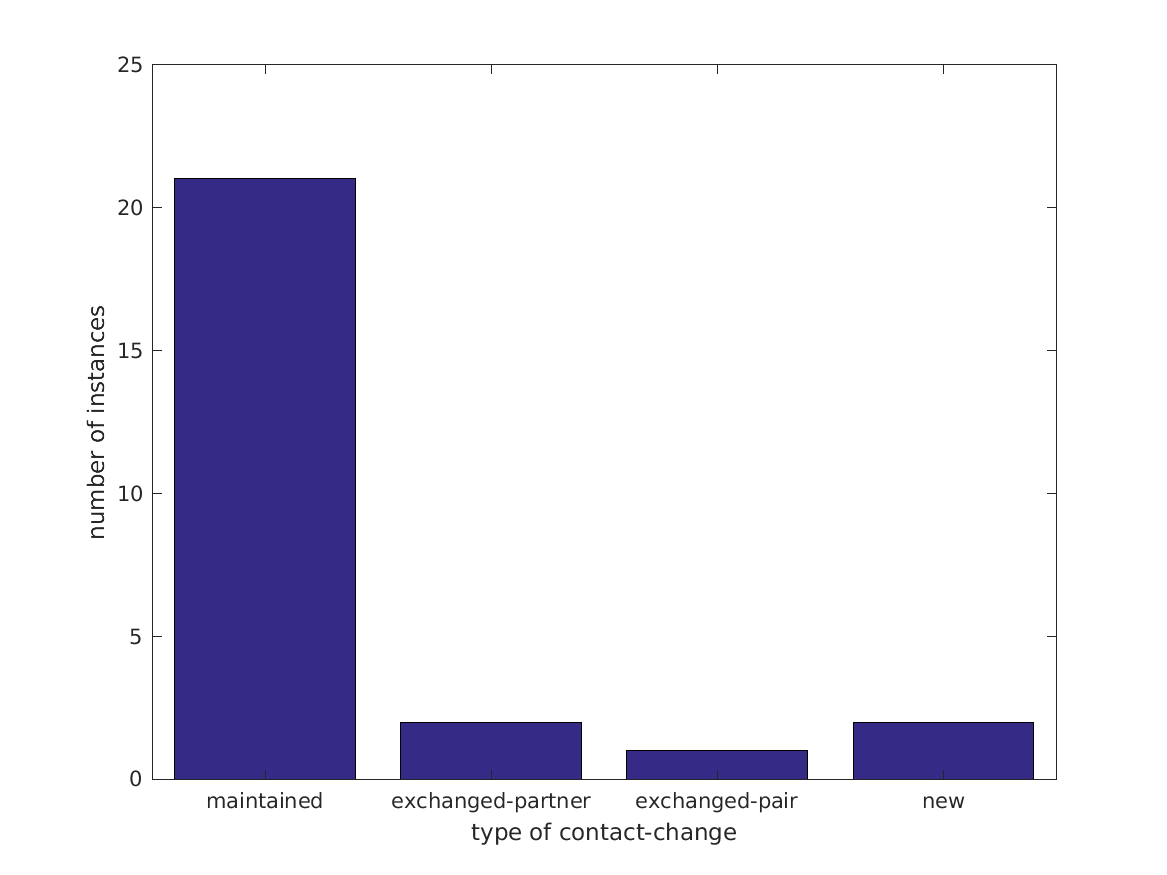

Bending Region Analysis

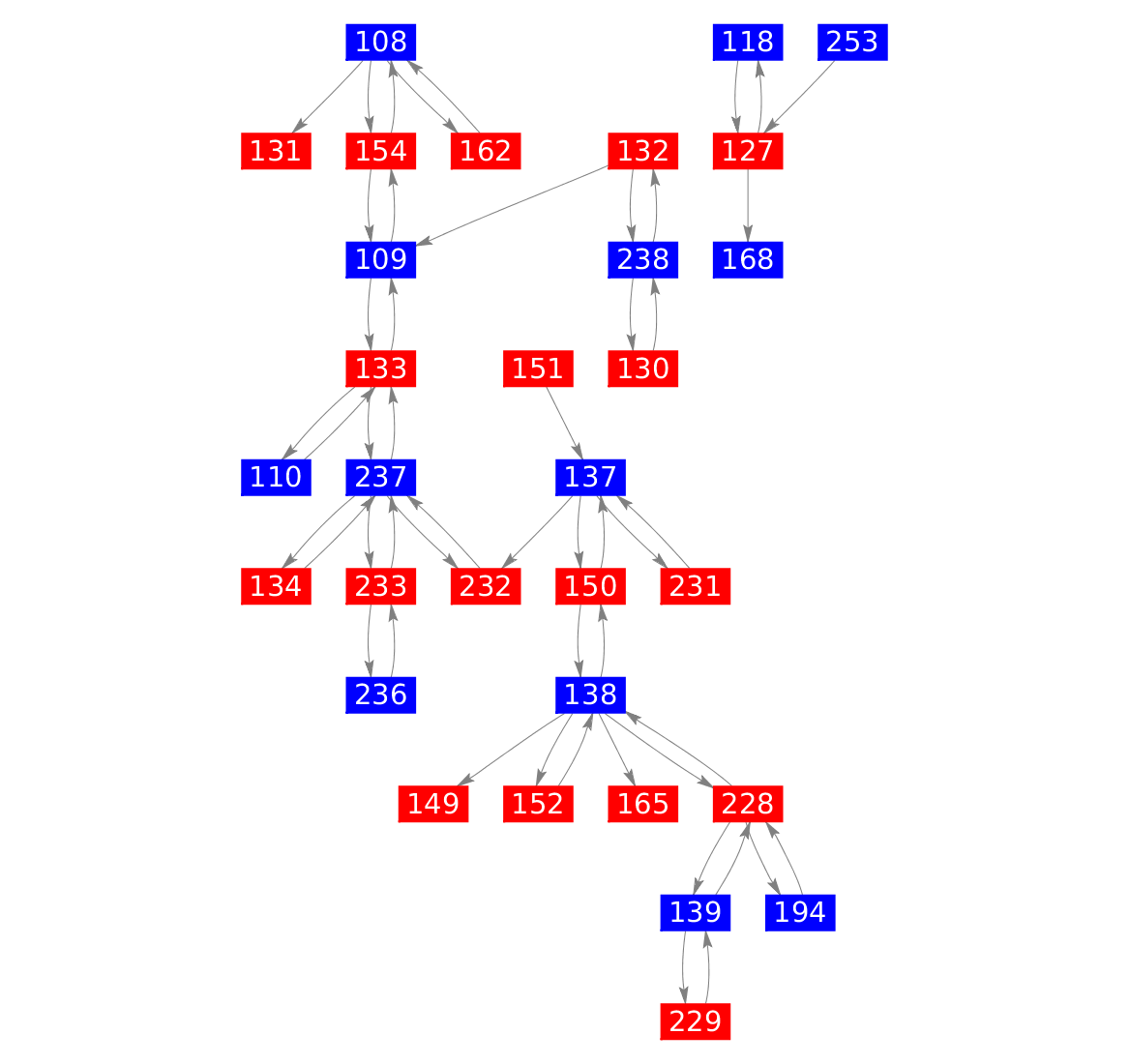

Dynamic Contact Graph

Conformer 1 Contact:
Residue 1 ———› Residue 2

Conformer 2 Contact:
Residue 2 ———› Residue 1

Movement classification: Shear

PyMOL Script

Download and extract PyMOL PML script file Download
