Cell Division Protein Ftsz

(All numbering and residues are taken from first PDB file)

Run Details Domains Sequence Morph Domain Pairs Contact Graph

DynDom run details

  Property   Value
  Name Cell Division Protein Ftsz
  Conformer 1
(PDB) 		7ohk (A)
  Conformer 2
(PDB) 		5h5g (B)
  Window Length 5
  Minimum ratio 1.0
  Minimum domain size 20

Domains

Domain Size Backbone RMSD
(A)		 Residues
1 232 1.76   12 - 201   210 - 226   245 - 252   256 - 260   287 - 296   312 - 313
2 70 2.3   202 - 209   227 - 244   253 - 255   261 - 286   297 - 311

Sequence


           ________________________________________________________________________________________________________________________
 7ohk(A) : SHMATLKVIGVGGGGNNAVNRMIDHGMNNVEFIAINTDGQALNLSKAESKIQIGEKLTRGLGAGANPEIGKKAAEESREQIEDAIQGADMVFVTSGMGGGTGTGAAPVVAKIAKEMGALT
         :
 5h5g(B) : *HMATLKVIGVGGGGNNAVNRMIDHGMNNVEFIAINTDGQALNLSKAESKIQIGEKLTRGLGAGANPEIGKKAAEESREQIEDAIQGADMVFVTSGMGGGTGTGAAPVVAKIAKEMGALT
           ________________________________________________________________________________________________________________________

           ______________________________________________________________________201___________________223__________________244_248
 7ohk(A) : VGVVTRPFSFEGRKRQTQAAAGVEAMKAAVDTLIVIPNDRLLDIVDKSTPMMEAFKEADNVLRQGVQGISDLIAVSGEVNLDFADVKTIMSNQGSALMGIGVSSGENRAVEAAKKAISSP
         :
 5h5g(B) : VGVVTRPFSFEGRKRQTQAAAGVEAMKAAVDTLIVIPNDRLLDIVDKSTPMMEAFKEADNVLRQGVQGISDLIAVSGEVNLDFADVKTIMSNQGSALMGIGVSSGENRAVEAAKKAISSP
           ______________________________________________________________________201___________________223__________________244_248

           ____255__260_______________________286_290__________________311_____
 7ohk(A) : LLETSIVGAQGVLMNITGGESLSLFEAQEAADIVQDAADEDVNMIFGTVINPELQDEIVVTVIATGFD
         :
 5h5g(B) : LLETSIVGAQGVLMNITGGESLSLFEAQEAADIVQDAADEDVNMIFGTVINPELQDEIVVTVIATGF*
           ____255__260_______________________286_290__________________311_____

Morph
Morph animation in progress.
Status: Initialising

This morph was created using the MorphIt_Pro protein morphing technique.
For more advanced options, right click on the model.


Show console


play backwards pause play forwards

Domain Pairs

Property Value
Fixed Domain
( blue ) 		1
Moving Domain
( red ) 		2
Rotation Angle
(deg) 		25.6
Translation
(A) 		-0.6
Closure
(%) 		56.7
Bending Residues
( green ) 		  201 - 210
  223 - 227
  244 - 245
  248 - 253
  255 - 256
  260 - 261
  286 - 287
  290 - 297
  311 - 312

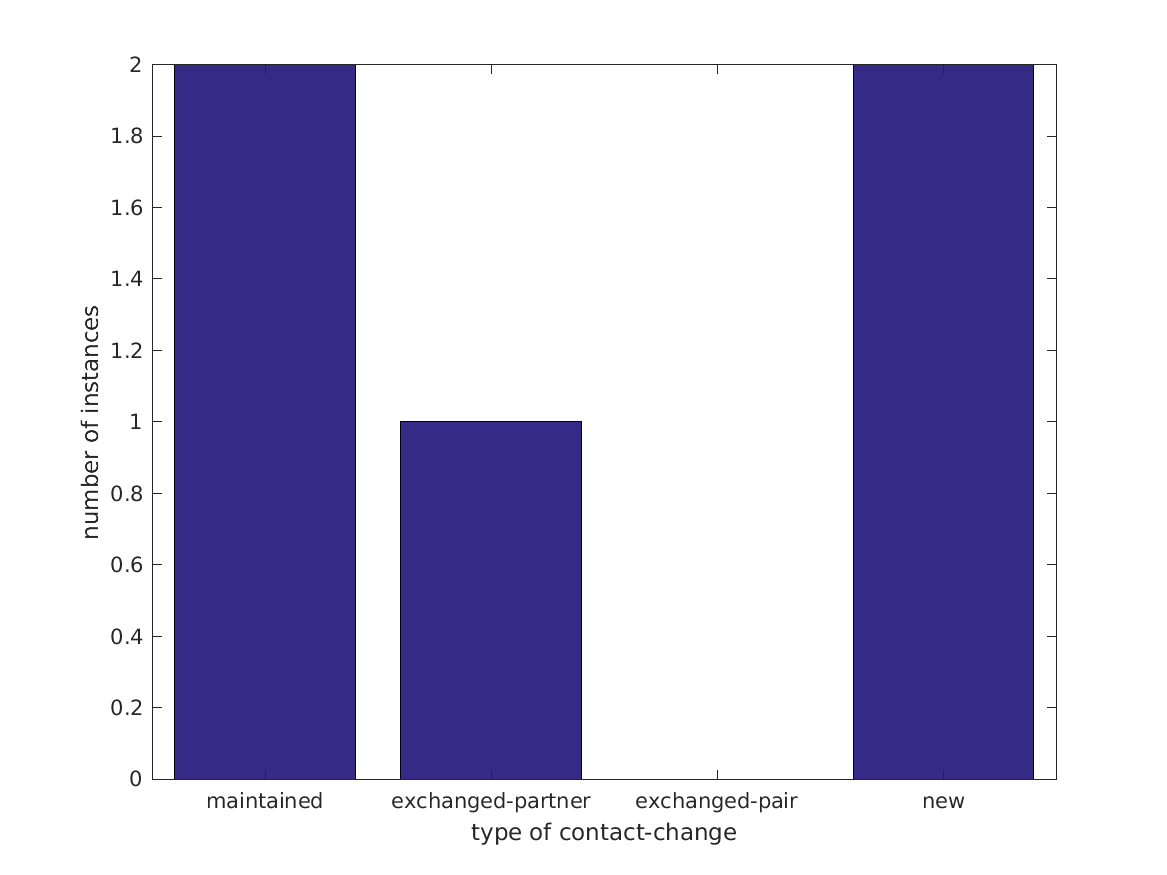

Bending Region Analysis

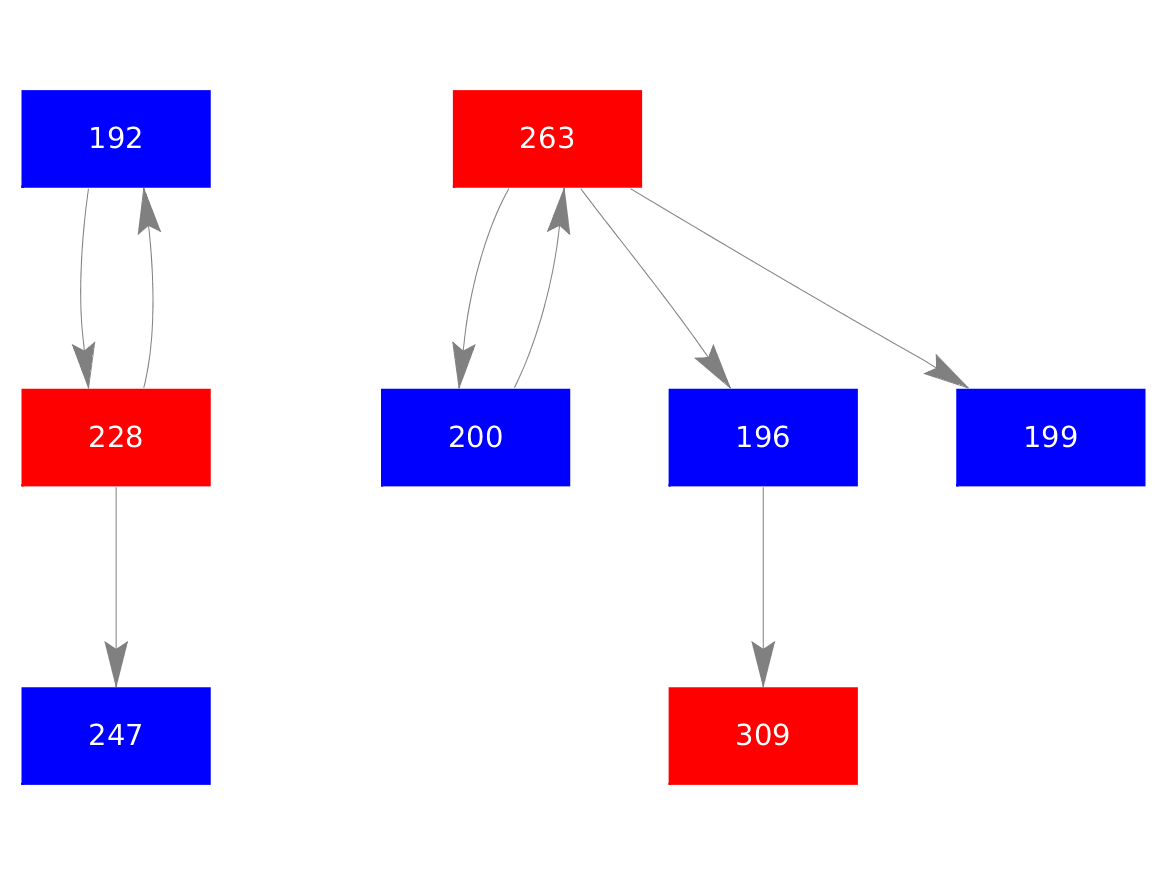

Dynamic Contact Graph

Conformer 1 Contact:
Residue 1 ———› Residue 2

Conformer 2 Contact:
Residue 2 ———› Residue 1

Movement classification: Mixed

PyMOL Script

Download and extract PyMOL PML script file Download
