Chaperonin

(All numbering and residues are taken from first PDB file)

Run Details Domains Sequence Morph Domain Pairs Contact Graph

DynDom run details

Property	Value
Name	Chaperonin
Conformer 1 (PDB)	7r9e (J)
Conformer 2 (PDB)	7r9o (J)
Window Length	5
Minimum ratio	1.0
Minimum domain size	20

Domains

Domain	Size	Backbone RMSD (A)	Residues
1	475	3.03	20 - 338 365 - 520
2	26	2.28	339 - 364

Sequence

`________________________________________________________________________________________________________________________` `7r9e(J) : RDAQRMNILAGRIIAETVRSTLGPKGMDKMLVDDLGDVVVTNDGVTILREMSVEHPAAKMLIEVAKTQEKEVGDGTTTAVVVAGELLRKAEELLDQNVHPTIVVKGYQAAAQKAQELLKT` `:` `7r9o(J) : RDAQRMNILAGRIIAETVRSTLGPKGMDKMLVDDLGDVVVTNDGVTILREMSVEHPAAKMLIEVAKTQEKEVGDGTTTAVVVAGELLRKAEELLDQNVHPTIVVKGYQAAAQKAQELLKT` `________________________________________________________________________________________________________________________` `________________________________________________________________________________________________________________________` `7r9e(J) : IACEVGAQDKEILTKIAMTSITGKGAEKAKEKLAEIIVEAVSAVVDDEGKVDKDLIKIEKKSGASIDDTELIKGVLVDKERVSAQMPKKVTDAKIALLNCAIEIKETETDAEIRITDPAK` `:` `7r9o(J) : IACEVGAQDKEILTKIAMTSITGKGAEKAKEKLAEIIVEAVSAVVDDEGKVDKDLIKIEKKSGASIDDTELIKGVLVDKERVSAQMPKKVTDAKIALLNCAIEIKETETDAEIRITDPAK` `________________________________________________________________________________________________________________________` `______________________________________________________________________________338_______________________364_____________` `7r9e(J) : LMEFIEQEEKMLKDMVAEIKASGANVLFCQKGIDDLAQHYLAKEGIVAARRVKKSDMEKLAKATGANVITNIKDLSAQDLGDAGLVEERKISGDSMIFVEECKHPKAVTMLIRGTTEHVI` `:` `7r9o(J) : LMEFIEQEEKMLKDMVAEIKASGANVLFCQKGIDDLAQHYLAKEGIVAARRVKKSDMEKLAKATGANVITNIKDLSAQDLGDAGLVEERKISGDSMIFVEECKHPKAVTMLIRGTTEHVI` `______________________________________________________________________________338_______________________364_____________` `________________________________________________________________________________________________________________________` `7r9e(J) : EEVARAVDDAVGVVGCTIEDGRIVSGGGSTEVELSMKLREYAEGISGREQLAVRAFADALEVIPRTLAENAGLDAIEILVKVRAAHASNGNKCAGLNVFTGAVEDMCENGVVEPLRVKTQ` `:` `7r9o(J) : EEVARAVDDAVGVVGCTIEDGRIVSGGGSTEVELSMKLREYAEGISGREQLAVRAFADALEVIPRTLAENAGLDAIEILVKVRAAHASNGNKCAGLNVFTGAVEDMCENGVVEPLRVKTQ` `________________________________________________________________________________________________________________________` `_________________________` `7r9e(J) : AIQSAAESTEMLLRIDDVIAAEKLR` `:` `7r9o(J) : AIQSAAESTEMLLRIDDVIAAEKLR` `_________________________`

Morph

Morph animation in progress.
Status: Initialising

This morph was created using the MorphIt_Pro protein morphing technique.
For more advanced options, right click on the model.

play backwards

pause

play forwards

Domain Pairs

Property	Value
Fixed Domain ( blue )	1
Moving Domain ( red )	2
Rotation Angle (deg)	38.6
Translation (A)	1.2
Closure (%)	96.7
Bending Residues ( green )	338 - 339 364 - 366
Bending Region Analysis

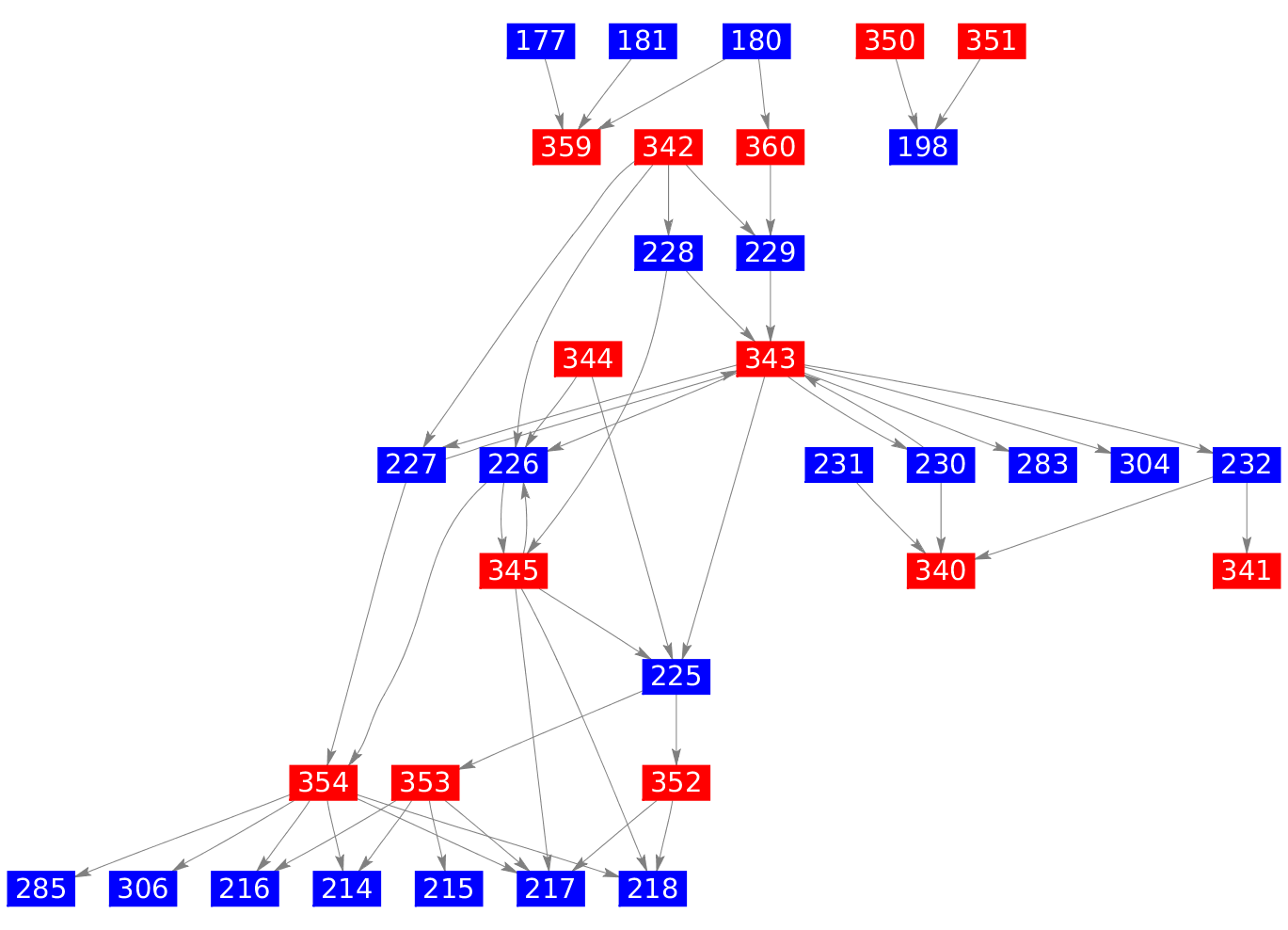

Dynamic Contact Graph

Conformer 1 Contact:
Residue 1 ———› Residue 2

Conformer 2 Contact:
Residue 2 ———› Residue 1

Movement classification: Hinge

PyMOL Script

Download and extract PyMOL PML script file
