Maltose-Binding Periplasmic Protein

(All numbering and residues are taken from first PDB file)

Run Details Domains Sequence Morph Domain Pairs Contact Graph

DynDom run details

  Property   Value
  Name Maltose-Binding Periplasmic Protein
  Conformer 1
(PDB) 		1n3x (A)
  Conformer 2
(PDB) 		1nl5 (A)
  Window Length 5
  Minimum ratio 1.0
  Minimum domain size 20

Domains

Domain Size Backbone RMSD
(A)		 Residues
1 201 0.67   111 - 260   313 - 329   331 - 368
2 161 0.51   3 - 110   261 - 312   330 - 330

Sequence


           __________________________________________________________________________________________________________109___________
 1n3x(A) : KIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKD
         :
 1nl5(A) : KIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKD
           __________________________________________________________________________________________________________109___________

           ________________________________________________________________________________________________________________________
 1n3x(A) : LLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYGDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGV
         :
 1nl5(A) : LLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYGDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGV
           ________________________________________________________________________________________________________________________

           __________257_________________________________________________309______________326______________________________________
 1n3x(A) : TVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDA
         :
 1nl5(A) : TVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATAENAAKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDA
           __________257_________________________________________________309______________326______________________________________

           ______
 1n3x(A) : QTRITK
         :
 1nl5(A) : QTRITK
           ______

Morph
Morph animation in progress.
Status: Initialising

This morph was created using the MorphIt_Pro protein morphing technique.
For more advanced options, right click on the model.


Show console


play backwards pause play forwards

Domain Pairs

Property Value
Fixed Domain
( blue ) 		1
Moving Domain
( red ) 		2
Rotation Angle
(deg) 		36.3
Translation
(A) 		-0.6
Closure
(%) 		99.4
Bending Residues
( green ) 		  109 - 113
  257 - 261
  309 - 315
  326 - 332

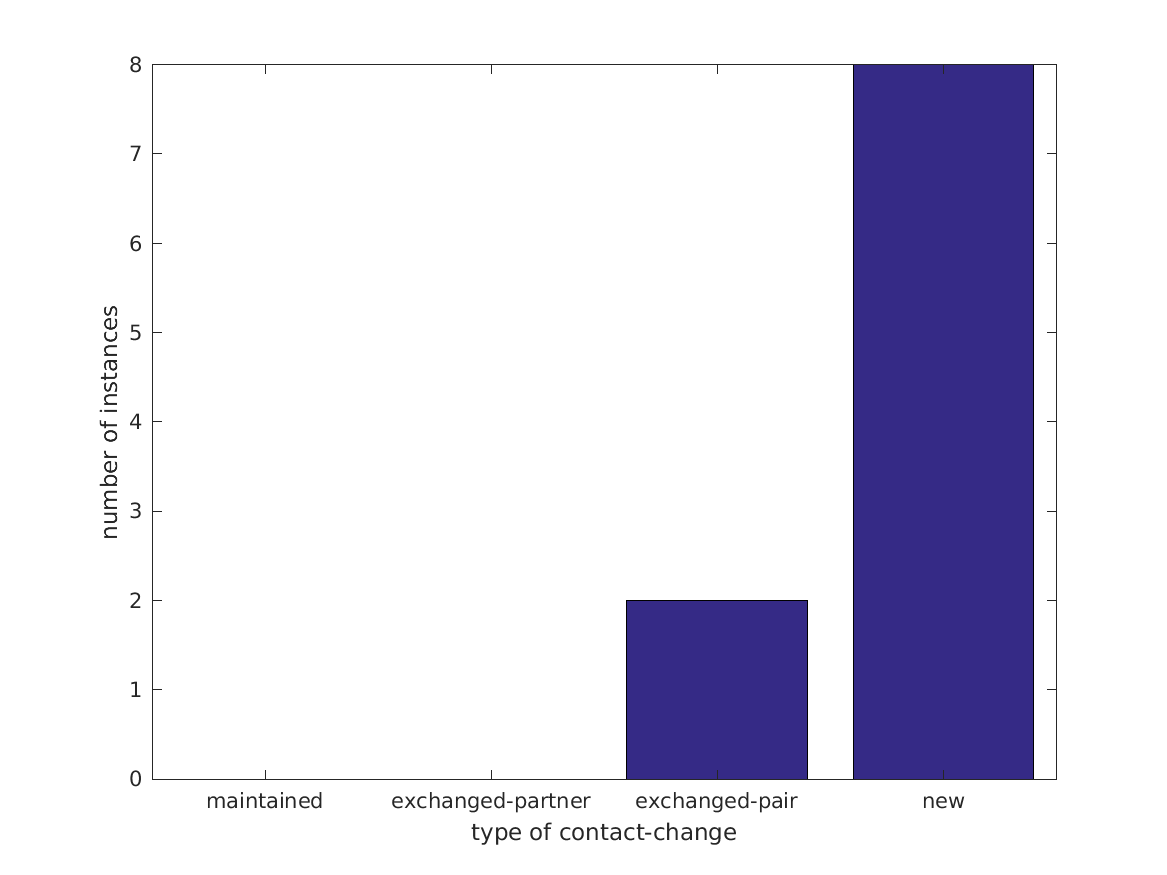

Bending Region Analysis

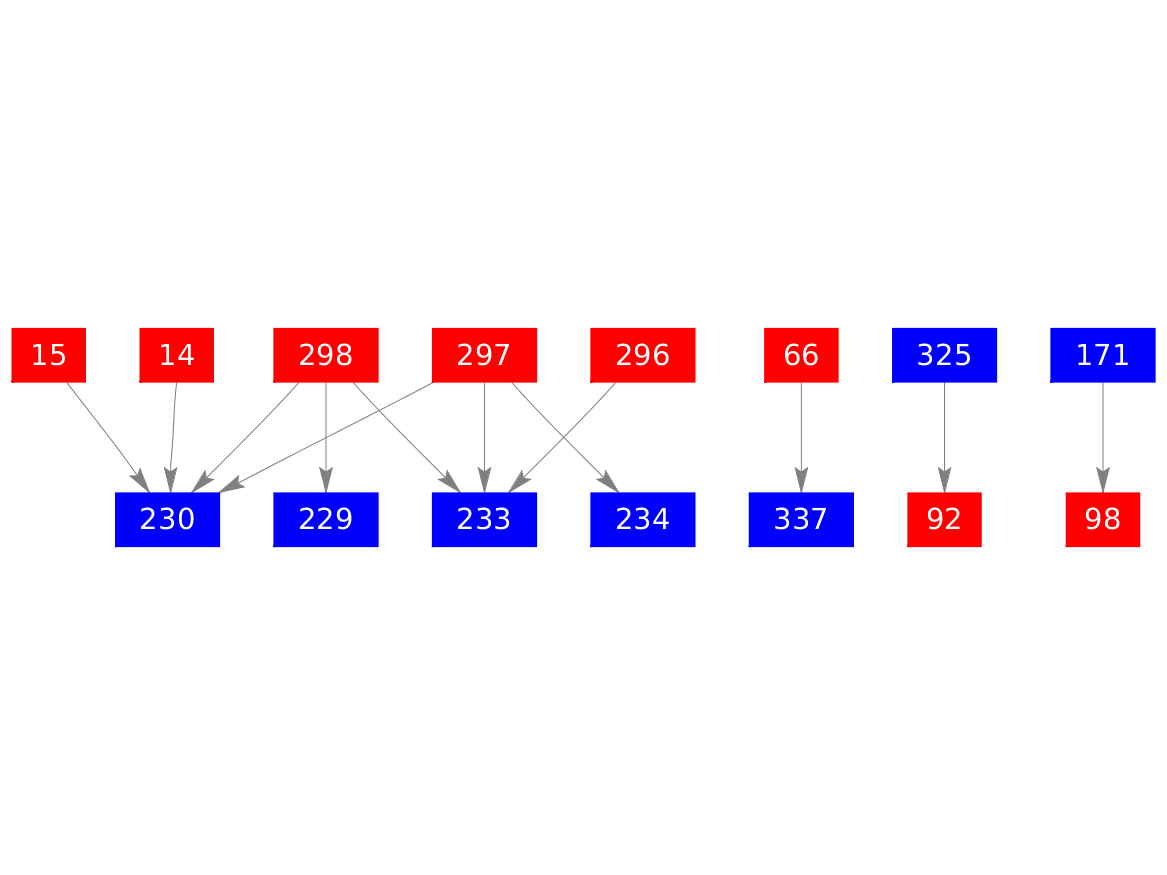

Dynamic Contact Graph

Conformer 1 Contact:
Residue 1 ———› Residue 2

Conformer 2 Contact:
Residue 2 ———› Residue 1

Movement classification: Hinge

PyMOL Script

Download and extract PyMOL PML script file Download
